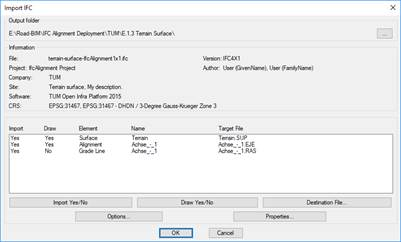

When executing the command, it will initially request the IFC file, once selected, the following window will appear in which both the characteristics of the project itself and its contents are displayed.
This option offers us the possibility of importing each of the elements.
Information: All the information contained in the IFC file and related to the project is shown.
In the list we will see the different elements that the file contains, in this case, it contains a surface, a horizontal and a vertical alignment.
Import Yes/No: We select the element we want to import.
Draw Yes/No: We indicate if after the import, we want the imported element to be drawn automatically.
Destination File: We select the name of the destination file of the element to be imported.
Once the dialogue is accepted, the elements will be imported and drawn, if applicable.
Export IFC

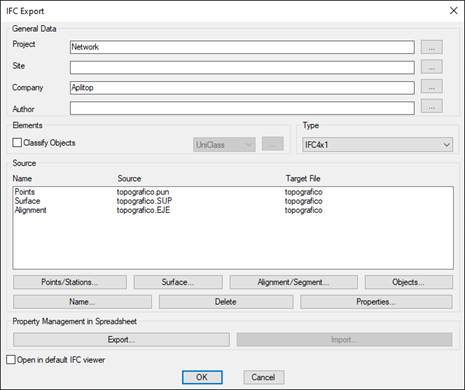

This command will enable you to export the content of our project to an IFC file. When first executing the command, the following window will appear in which you select the elements to be exported.
