The application features a browsing control to enable you to browse through the different alignments of the project at will. This control will affect the 3D Viewer and the view of cross-sections. You can access these controls through the browsing menu or simply by pressing F2.

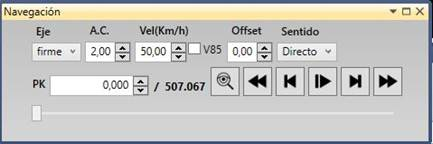

Illustration2: Browsing menu
This control features the following tools:
Select the alignment on which you wish to browse.
Height of the driver
Speed in km/h (in the event of making a crossing)
Enable / disable the use of the operating speed. In the event the IFC includes the alignment operating speed, if the crossing speed is activated it will be the operating speed. In addition, using the control to move around the alignment (with this option active) will enable you to see the operating speed at each station.
Moving around the alignment.
(In the event of a crossing) Select the direction of movement from the initial station to the final station (Direct) or vice versa (Inverse).
The current station. This parameter can also be adjusted using the slider shown at the bottom of the control. The left-hand side will set the station as the initial station, while the right-hand side will set it as the final station.
