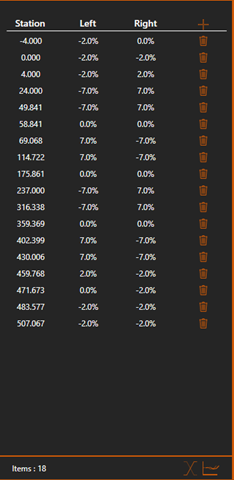

At the main window’s left , the data from the current super elevation is displayed. Additionally, this panel will provide some specific super elevation’s tools.
Add: With this button we can add new super elevation definitions stablishing: Station, Left super elevation and Right super elevation:
Super elevation list:
For each super elevation’s definition, we’ll have a line like this on the list:
The items, from left to right, are:
·Station: The super elevation station. We can double click it and write a new station. The list will be reordered by station after the change.
·Left: The super elevation’s percentage at the left side. We can double click it and write a new percentage.
·Right: The super elevation’s percentage at the right side. We can double click it and write a new percentage.
· Remove: Removes the super elevation. It’s also possible to remove it by selecting it’s list’s row and pressing the delete key.
When a list’s row it’s selected the vertex will be highlighted on the CAD view.
Super elevation’s tools:
At the panel’s bottom right, we can find specific super elevation’s edition tools:
Invert: Swaps the super elevation definitions of the left side and the right side.
Offset Stations: It allow us to set a new initial Station for the super elevation, modifying all the vertices stations.
