This application allow us to edit and visualize a super elevation file (per) and to also visualize the curvature’s diagram from a horizontal alignment (eje file).

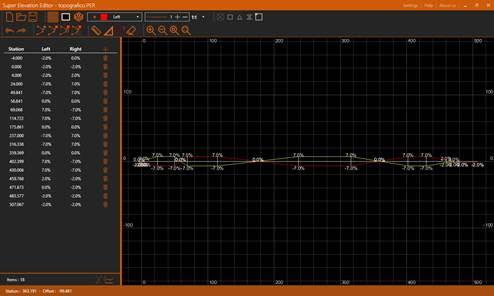

Once we run the application, we’ll see something similar to this:
Along this document we are going to detail each of the parts, as a general overview we can distinguish multiple sections in the application’s interface:
·Title bar: At the top, the orange bar. The application’s title appears at the left side. To the right we can find some options: Settings, Help and About us. Further to the right we have the usual window’s controls: minimize, maximize/restore and close.
·Toolbar: Just under the title bar. It allow us to manage the state of the view and to access to all the different edition tools.
·Super Elevation’s panel: Under the toolbar, to the left, we can see a panel with the super elevation’s information.
·CAD View: The application provides a CAD view in which the super elevation will be represented as polylines, it also allow us to take measures.
·Status bar: At the window’s bottom, the orange bar. It provides general information like the cursor coordinates in the drawing and information messages during the edition commands.
