19.4.5. Managing Properties in Spreadsheet

These options will allow us to easily modify the properties of the objects to be exported to IFC.

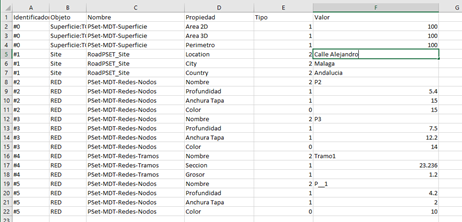

Export: Generates an Excel sheet with a list of all mapped properties. The output would be similar to the following capture:

In this way we can change both the "Value" and the name of the "Property".

Once the modifications are made, we save the file with xls or xlsx extension.

Import: We select the file generated in the previous step, automatically the modifications of the Properties that have been defined will be incopora.
