This option will allow us to project a 3D polyline situated in our work with regard to a longitudinal profile obtained in the same work or model. With this in mind, the longitudinal must first be drawn on which it is wished to project the polyline.
Upon executing the command, the following window will appear to facilitate the selection of the polyline (s) to be projected.
Select: We will graphically select all the 3D polylines we wish to project.
By Layers: We will select the layers on which the polylines to be projected are situated. In this case, it is important that the selected layer only contains the polylines to be projected and no other element.
The command will then request the following information:
Horizontal alignment: Horizontal alignment the longitudinal is generated from over which the 3D polylines will be projected.
Longitudinal Profile: Graphic selection of the longitudinal profile over which the designated polylines will be projected.

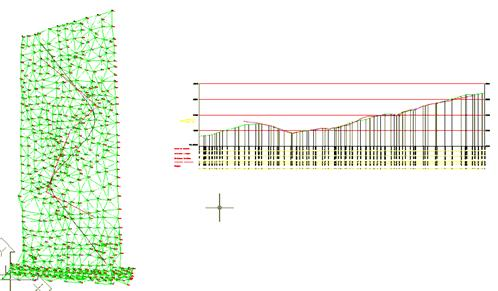

The following is an example of this command’s use.
