This numerical data element allows one to set limits and boundaries corresponding to the profile being drawn.
When it is edited, the following window is displayed, which is described below:
Codes to be Viewed: The longitudinal profile’s codes that will set the limits or boundaries.
Element Height: Represents the distance to the immediately preceding numerical data element, expressed in number of characters. This value may be expressed in two different ways:
· In number of characters
· In drawing units
When either of them is validated, the other value is automatically recalculated.
Message: Attached text that appears in this numerical data element’s definition.

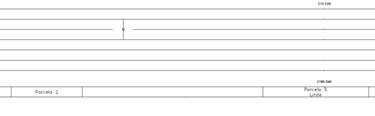

An example of the use of this element can be seen below:
