This numerical data element allows one to view the intersection points of the segment drawn compared to the segments in the same folder or project.
This option is only available for the Draw Composite Profile option.
The configuration options are as follows:
Block to be Represented Block that will be represented on the longitudinal profile drawing. It will be inserted at the height of the segment with which the intersection is produced.

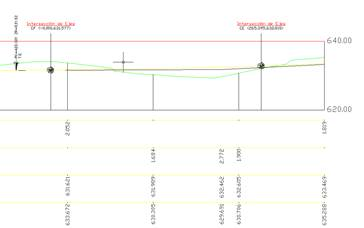

Label Information: Allows one to label information concerning the intersection with other segments. It shows the name, station and height of the intersection with another segment. A drawing where one can see how this information is labelled then displayed.
