This application allows us to visualize horizontal alignment files (EJE), import horizontal alignments from LandXML (xml) and make precise adjustments with the tools provided by the application.

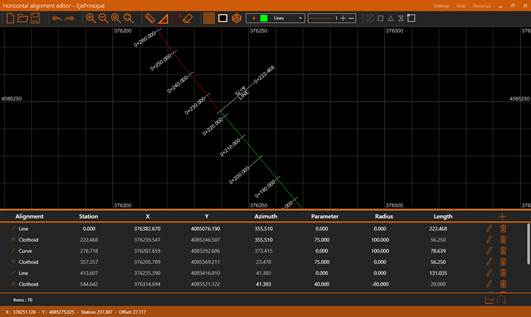

Once we run the application, we’ll see something similar to this:
Along this document we are going to detail each of the parts, as a general overview we can distinguish multiple sections in the application’s interface:
·Title bar: At the top, the orange bar. The application’s title appears at the left side. To the right we can find some options: Settings, Help and About us. Further to the right we have the usual window’s controls: minimize, maximize/restore and close.
·Toolbar: Just under the title bar. It allows us to manage the state of the view and to access to all the different edition tools.
·CAD View: The application provides a CAD view in which the horizontal alignment will be represented as polylines, it also allows us to take measures.
·Horizontal alignment’s panel: Under the CAD view we can see a panel with the active aligment’s information.
·Status bar: At window’s bottom, the orange bar. It provides us with general information as: the cursor coordinates in the drawing, which station and offset correspond to the cursor coordinates on the alignment and information messages during the edition commands.
