This tool allows the coordinates and azimuths of specific points along a horizontal alignment to be obtained. It may be used for setting out on the horizontal alignment selected. Once the command is executed, the following dialog box appears where the results to be obtained are specified.
Initial Station: Initial station from which the list is to start.
Final Station: Station up to which the alignment list is to be performed.
Displacement: Adjustment to be applied with respect to the horizontal alignment. If one wishes points to the left, it will be a negative value; and if to the right, it will be a positive value.
Unique Points: This box is activated, MDT will open the dialog box with the alignment’s unique points.
Interval: Interval with which one wishes to list the alignment for straight sections.
Interval in Curves: Interval with which one wishes to list the alignment for curved sections.

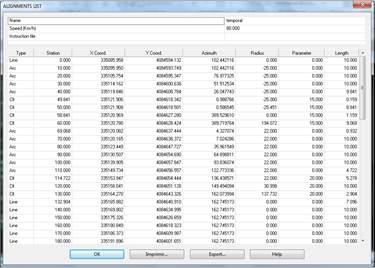

Once the dialog box has been validated, a list will appear containing the features specified in the previous window.
The information may be transferred to a printer or exported to a points file. Alternatively, its content can also be transferred to an Excel worksheet. In order do so, either the Print or Export buttons should respectively be clicked.
