17.3.6. Borders
In this section you can specify the limits in plant for the calculation of the volume. In this way, the designated polylines will indicate the limit or boundary up to which the calculation of surface and therefore volume will be carried out for each transverse profile.
Select: We select the polylines that we want to function as a border for the calculation. The number of designated polylines will automatically be displayed.
Delete: We remove all polylines designated as border.

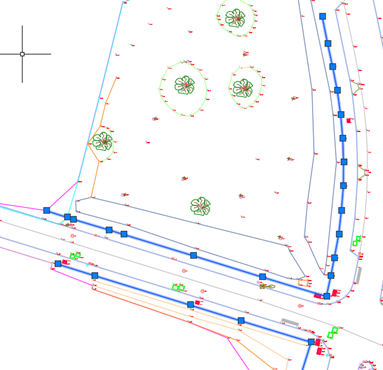

Example of polylines that act as a boundary in volume calculation
|
|
