The concept of zone refers to an enclosed area in which trackers are located. It is presented with a closed polyline. All the trackers of the project must be within one of the defined zones.

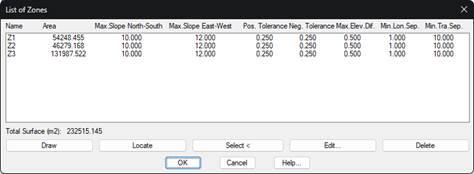

When you run this option, the following window will appear, showing a list of the existing zones in the current project.
The definition of each of the parameters of each zone can be found in the next section, Edit Zone.
Draw: Pressing this button will draw the outline of each zone, as well as the name of the zone.
Locate: Zooms in on the selected zone.
Select < : With this option we create a new zone, it will ask us for the closed polyline that represents it and then the name, it is possible to designate in the drawing a text that represents the name of the zone to be defined.
Edit: Edit the selected zone. The following section describes its characteristics.
Delete: Deletes the selected zone, the representation of it in the drawing will also be deleted.
