9.4. Detail of Trackers

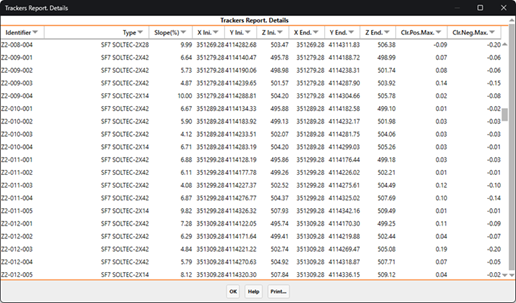

With this report we get a list with the detailed characteristics of each tracker. This type of list can be generated from a specific area or with all the trackers of the project.
Identifier. Tracker's name.
Type: Description associated with the tracker based on the type of tracker from which the conversion was made.
Slope: Longitudinal slope of the tracker.
Initial Coordinates: Coordinates of the tracker's initial vertex.
End Coordinates: Coordinates of the tracker's final vertex.
Clr.Pos.Max: Maximum positive elevation difference of the tracker poles with respect to the current surface (clearance).
Clr.Neg.Max: Maximum negative elevation difference of the tracker poles from the current surface (clearance).
