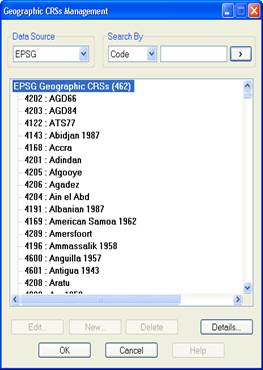

Displays the list of geographic CRS’s included in the EPSG database. Also lets you edit, delete and create new user CRS’s.
Each line of the list includes the code and name of the CRS separated by a colon.
The dropdown list of the Data Source section lets you change the EPSG data query to a user data query and vice versa.

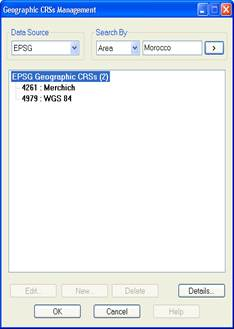

In the Search By section you can filter the query data by Code, Name and Area. The last option is only available for EPSG data. The name of the area (continent, country, etc.) must be specified in English. You have to enter the search string in the box on the right and click the button. In the case of searching by code, it will only display the result if the code in question exists in the database, whereas in the search by name and area, it will display all the CRS’s whose name or area of use contains the string entered.

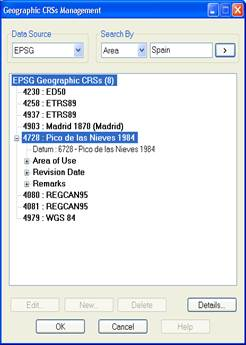

By double-clicking a CRS on the list, its properties are displayed: Datum, Area of Use, Revision Date and Remarks .
New user CRS’s can be created. The data requested are:
Code: An alphanumeric string of up to 16 characters is allowed.
Name: An alphanumeric string of up to 64 characters is allowed.
Datum: Select from the list displayed by clicking the button .
TcpMDT
button. In the case of searching by code, it will only display the result if the code in question exists in the database, whereas in the search by name and area, it will display all the CRS’s whose name or area of use contains the string entered.
.
