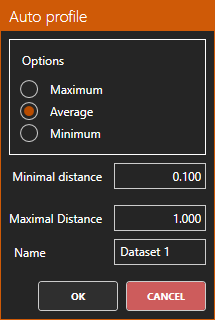

Extract Profile from Points

· Options: The criteria that must be followed to get the next profile’s vertex:

o Maximum: Takes the point with the maximum height within the band width defined by minimal and maximal distance parameters.

o Average: Takes the average of the points within the band width defined by minimal and maximal distance parameters.

o Minimum: Takes the point with the minimum height within the band width defined by minimal and maximal distance parameters.

· Minimal distance: From the current vertex, to which minimum distance (stations difference) should the next point to consider be at.

· Maximal distance: From the current vertex, to which maximum distance (stations difference) can the next point to consider be at.

· Name: The name for the resulting lon file once the extraction is finished.

Points size: It allow us to set the size for the points in the CAD view. Can be set between 1 and 10, both included.

Remove points: Removes the current points profile from the application.
