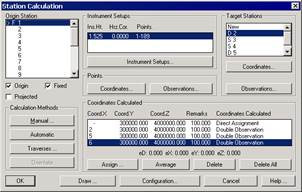

In this mode, only the essential survey calculation controls are displayed. In order to access the other options, one should directly use the options menu.
Origin Station. Allows one to select the station of origin. Once selected, the dialog box displays the instrument set-ups at this station, the stations and points read, as well as the coordinates calculated.
Origin. When this check box is activated, it indicates that the station should be considered as an origin in order to automatically calculate stations and points by clicking the appropriate button. See Automatic Calculation.
Fixed. If this option is activated, the station’s coordinates will not be modified whichever calculation method used.
Projected. Activating this option indicates that the survey is not using plane coordinates, but one of the projections permitted by the application. See Survey Data command.
Instrument Set-Ups. Allows access to Instrument Set-Up information.
The following options are found in the Points box:
Observations. Allows access to the Points Observations information.
Coordinates. Allows access to the Point Coordinate information.
The following options are found in the Stations box:
Stations. Displays a list of the stations read from the origin station. Double clicking on New allows one to enter an new station observation from that base station.
Observations. Allows access to the Station Observations information.
Coordinates. Allows access to the Station Coordinates information.
The following options are available in the Calculation Methods box:
Automatic. See Automatic Calculation.
Manual. See Manual Calculation.
Orient. The program assigns the horizontal correction calculated from the station and observed stations when the Orient button is clicked.
Traverses. See Traverses.
The Calculated Coordinates box displays the coordinates calculated from the station of origin. See Calculated Coordinates. See Calculated Coordinates.
The Draw button displays the current survey’s stations, points and station observations by clicking the relevant button.
Lastly, the Configuration button allows access to Surveying Configuration.
