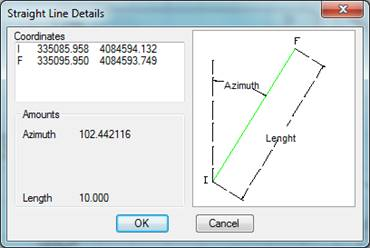

The straight line is defined by its initial (I) and final (F) points. The initial azimuth and the length are calculated automatically and they are indicated in the dialogue which is shown by pressing the Details button in the command Edit Alignment
.
The straight lines are drawn as line type entities or as a polyline with two vertices.
Any kind of modification can be made to these elements using the CAD commands: copy, rotate, move, lengthen, shorten etc.
