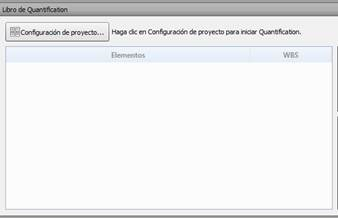

Execute View > Windows and check the Quantification Book box to display the main quantification window.

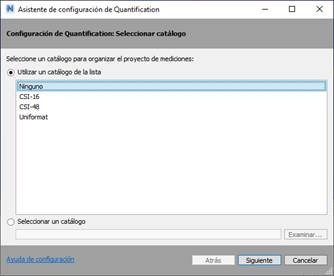

Click on the Project Settings button and select the None option in the following dialogue box.

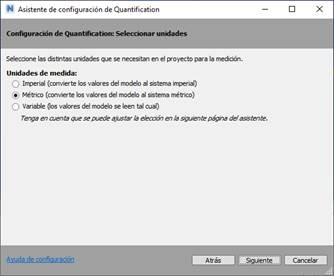

Set measurement units to Metric

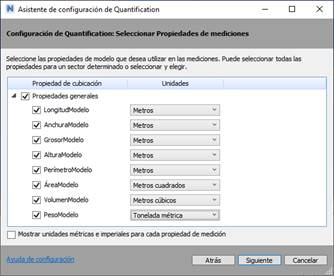

Select the desired units of measure for each property:

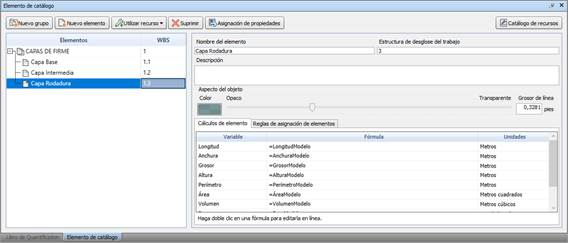

Click on the Element catalogue button and define groups and elements in accordance with how you wish to perform the measurement, for example:

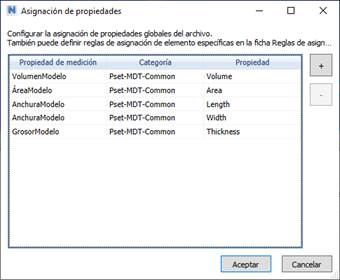

Click on the Property Assignment button and add the correspondence between the measurement properties of the objects with the properties of the DTM entities. These can be from the group of common properties (Pset-MDT-Common) or those specific to the object (Pset-MDT-RoadbedLayer, for example).

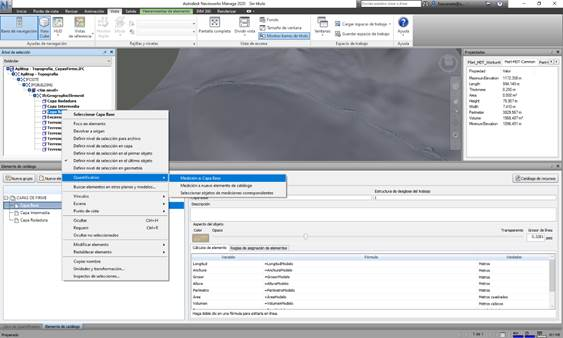

For each item to be measured, first select the catalogue item in the quantification book, followed by the corresponding object in the measurement tree. Then click on the right menu button and execute the Quantification > Measure to <element> option, where <element> is the name of the catalogue element.
Repeat the process for each of the desired elements.
