This command allows us to convert a file in LandXML format to different DTM files.

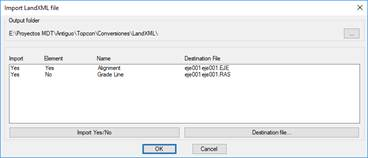

The program initially asks us for the LandXML file that we want to convert, and then the following window will appear showing the information associated with that file, letting you select its different elements.
Output folder: Directory in which the converted files will be dumped, these will be created with the name of the element to be converted and the corresponding extension.
Browse: Allows us to select the output folder.
Elements to Convert: A list will appear with the different elements that make up the selected LandXML file. In this list you can select multiple components that you want to convert.
In Points, Surfaces and Horizontal Alignments we have two options for performing the conversion:
Import: The information is dumped into a file.
Draw: The selected element is drawn automatically.
