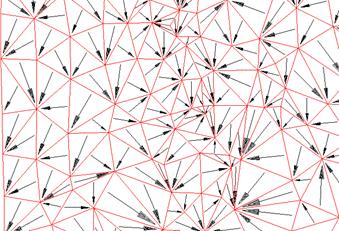

This command draws an arrow for each triangle of the current surface. An arrow’s direction indicates the triangles lowest vertex.
As can be seen, the options available are the same as for any other mapping command. The Arrow Scale Factor parameter multiplies by the triangle’s size before serving as a scale to insert the arrow. The value 1 indicates that the arrows would fill the entire height of the triangle.
The arrows drawn correspond to insertions of the bloques\flecha.dwg block located in the program installation directory. This block can be edited or replaced by another, taking into account that its size must be equal to one for the scaling to work correctly.
