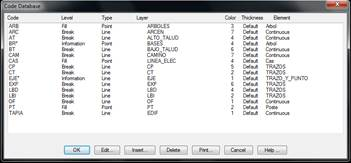

This command displays a window allowing one to view and interactively edit the Codes Database’s contents.
The list’s parameters are as follows:
Code: Text which should coincide with a point’s code. Wildcard characters such as “?” (coincides with any character) and “*” (coincides with any group of characters) can be entered. These increase the versatility of drawing from codes, avoiding the need to define more codes than is necessary.
Level: Level assigned to the points when the Classify by Levels command is executed.
Type: the type of entity drawn by the Draw command under Codes. It can be Point, Block (2P), Block (3p),Line or Area.
Layer: CAD layer used to draw polylines or insert blocks.
Color: Sets the color used to draw polylines.
Element: Depending on the Type field, can be the name of the block to be inserted if it is Point, the type of line if it is a Line, or the hatch pattern if it is an Area.
The dialog box is equipped with the following buttons:
Edit: Modifies the parameters of the code selected by displaying the dialog box called Codes Database Element.
Insert: Enters a new code into the Database. It displays the dialog box called Codes Database Element.
Delete: Deletes the code selected from the list.
Print: Generates a list of codes for the printer or stores it in a text file with a .PRN extension. It displays the List for Printer dialog box.
