With the CAD menu controls we can manage the CAD view:
Grid: Enable/Disable the grid
Background color: Sets the CAD view’s background color.

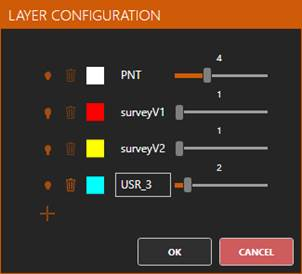

Layer configuration: Allow us to manage the CAD view’s layers. When we click the icon, the following dialog is shown:
Each layer has the following controls:
Visibility: Sets if the layer is visible or not.
Remove: Deletes the layer from the CAD. This is not always possible, there are special layers which can’t be removed and whose life cycle is managed by the application.
Layer’s name: Allow us to modify the layer’s name. There are special layers that can’t be renamed.
Line/Point width: Allow us to set the line/point width for the layer. Is bounded between one and ten.
Current Layer: Allow us to select the current layer. layers can be shown or hidden by clicking the visibility icon
Global line width: Sets the line width for each layer simultaneously.
