17.22.1. Material Transport

Compensate: Compensation between a block of cut and one of fill. The command first requests the cut block from which to extract the material, then the fill block where it should be taken.

Dump: In this case the cut material is taken to a dump. First the cut block to be moved is indicated then the corresponding dump is selected from the list.

Stockpile: This option is the opposite of the dump option. First, we select the stockpile from which to bring the material, then the fill where it is to be taken.

Delete: To delete any of the earth movements carried out.

Delete All: To delete all movements carried out, leaving earthworks as they were at the start.

Locate: A zoom window over the elements that formed part of the movement selected.

Apply: Re-draws the block diagram in terms of the earth movements carried out.

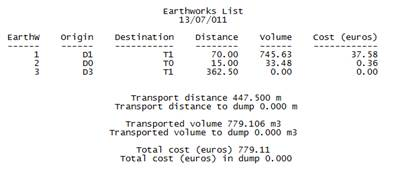

Print: Shows a detailed list by printer, with the different movements and the totals for each concept.
