2.9. Orthoimages

1. Hide the mesh and set Top view.

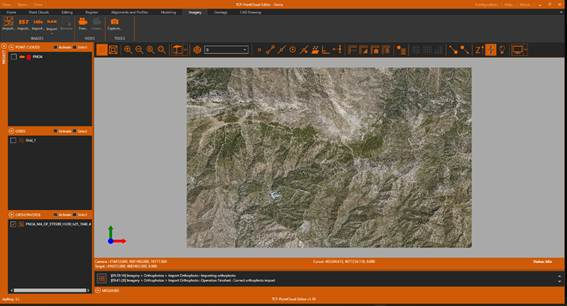

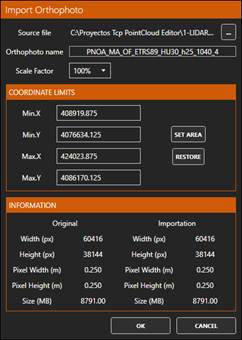

2. On the Imagery ribbon, IMAGES group, press the Import Orthophoto button and choose in the folder 1-LIDAR\PNOA the source file PNOA_MA_OF_ETRS89_HU30_h25_1040_4.tif given by © National Geographic Institute of Spain, applying a scale factor of 100%. Press OK to start the import. Turn off lighting and zoom extension.

3. In the table of contents, select the grid and right-click and Representation. Under REPRESENTATION MODE select the Faces only option. In REPRESENTATION COLOR activate the By Texture option and choose the name of the loaded orthophoto. Press OK.

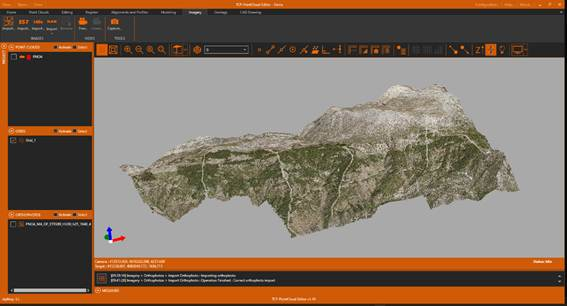

4. In the table of contents, turn off the orthophoto, turn on the grid, and set a 3D view. In the toolbar, turn off the Illumination.
