Running this option will display a list of all the trackers of the current project.
Listing Features:
Tracker: Name of the tracker.
Type: Initials associated with the type of tracker.
Length: Length of the tracker.
Slope: Calculated longitudinal slope of the tracker.
Tol.: Maximum difference in elevation of the tracker with respect to the ground.
Comment: This section shows a summary of the tracker's non-compliance, in the event that it does not comply with any of the requirements specified in the project or zone to which it belongs.

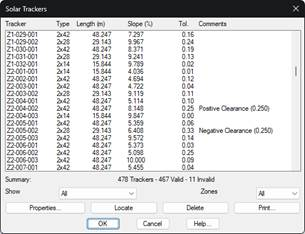

Additionally, there is the possibility of filtering the list according to different criteria, either by zones or by status of the trackers at the compliance level. The list of zone 3 with the invalid trackers is shown below, in this case for not complying with the conditions of the Clearance.
Properties: This action performs the edit of the selected tracker in the list. This command is described in its corresponding section.
Locate: Zooms in close to the selected tracker in the list.
Delete: Deletes the selected tracker in the list, additionally, it will also be deleted from the drawing.
Print: Possibility to print the list with the selection made. The behavior of this print tool is the same as the rest of the TcpMDT options.
