With this command we will be able to draw the profile view of a tracker. The drawing is done in a similar way to the Composite Profile Drawing within the Long Section chapter.
Initially, it asks us for the tracker to draw, being able to select the tracker in different ways, as in previous options:
·Individual: Select the tracker to draw in elevation.
·Multiple: It will ask us for several trackers and each of the trackers will be drawn in a column in elevation. In this option, it will ask us for vertical separation so that the drawing does not overlap.
·Zone: This would be the same drawing method as the Multiple option, but in this case, all trackers of the selected zone would be drawn.
When the tracker is selected, the following window will appear in which we will configure the characteristics of the drawing.

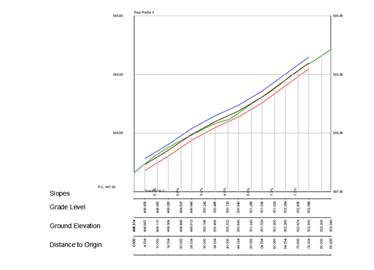

The resulting drawing It is similar to the aforementioned Draw Compound Profile, except that the characteristics of the tracker and the corresponding clearances are added.
