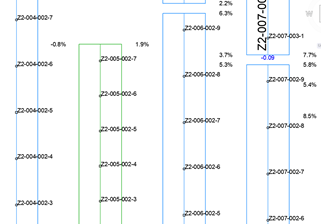

4.1. Draw Poles

This command will automatically draw all of the poles for each tracker. Both the name and the symbol associated with it will be labeled. Previously deletes all existing features on the layer on which they are drawn.
·         A circle indicates that it is a simple type support.
·         A square indicates that it is a motor-type mount.
