If the existing roadbed is used, the program also calculates the volume measurement of the reinforcement layers. In order to do so, the reinforcement layers should have been previously defined to the segment selected (see Definition of Roadbeds in the Cross-SectionTemplates section) Should this be the case, the following parameters are displayed:
Surface of Reinforcements (S.Ref.): It is the surface between the reinforcement marks and two consecutive stations.
Volume of Reinforcement (Vol.Ref.): It is the volume of the reinforcement between two consecutive stations.

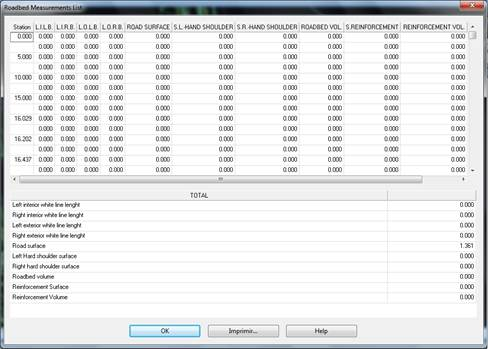

The program initially requests the segment containing the cross-section defined. One then has to enter the station interval, as well as choose whether Normal or Accumulated list is desired. Lastly, the resulting list is displayed.
The information can be sent to the system printer or exported to an Excel spreadsheet from this window.
