If this command is selected, the orientation of the coordinates system of the selected points’ coordinate system can be changed.
After invoking the command, one is requested the origin or number of the Point from which one wishes to rotate. The former case, one selects a point (by entering its coordinates, numerically, graphically or by selecting a point in the job) and by entering the point’s Name in the latter case.
The rotation Angle is then entered, which can be done either graphically or numerically, and the scatter plot is redrawn and centered on screen.
Rotate Points (3D)
This command is similar to the previous command except that the rotation is conducted in 3D. The following window will appear on executing the command:
Origin: Coordinates from which the rotation is to be conducted.
Rotation axis: We specify if the roation axis is the X, Y or Z axis.
Rotation angle: We specify the rotation to be used in gradians.

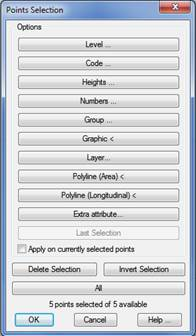

Once the different parameters have been inserted the command will request the points to be rotated using the usual point selection window. After validating this window, the selected points will be rotated.
