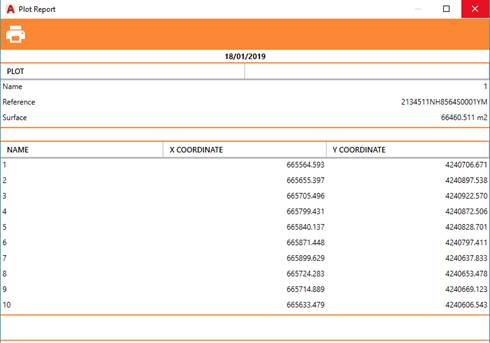

This command will allow you to generate a list with all the information associated with the plot with the option of printing the information.
Plot Drawing

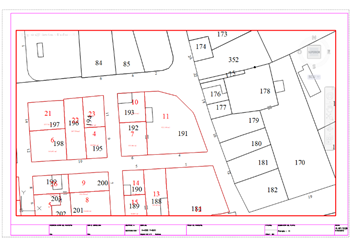

This command will enable us to represent the selected plots on a sheet of paper and in a specific format. The following dialogue box will appear on executing this command:
Plots to be represented: Selection of the plots. We can specify all the plots or designate one graphically. A sheet of paper will be created with each of the selected plots. The name of the sheet of paper will be the name of the plot.
In the event the sheet of paper already exists, the program will notify us and ask if we wish to overwrite.
Representation – Sheets: Selection of the paper format in which we are going to execute the presentation.
Scale: The desired drawing scale in the representation of the plan.
Once the dialogue box has been checked, a sheet of paper will be created for each plot selected.
