This command displays a list containing the points selected. It has a vertical scroll bar, that enables one to select a point from the list with the cursor, which can be located on screen by clicking on the Locate button.

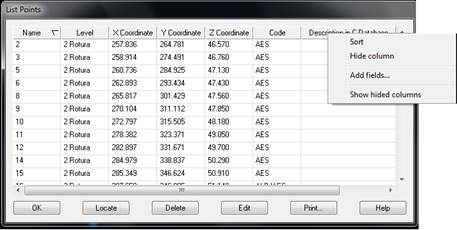

Initially the list appears ordered according to the name of the points, in ascending order. Clicking on the first cell of this column inverts the order. Right clicking on the line that contains the headings displays a menu used to change the field used for ordering, as well as hide and/or add fields to the list. A line of the list can also be hidden by right clicking on it.
When adding a field, a window is displayed with a list of all the predefined attributes that the program recognizes. Pressing the button Browse Drawing, it runs through it, and in the list displays only the attributes for which a point has a defined value.
It also allows one to edit these points. In order to do so, a point within the list is selected and the Edit button clicked. The Edit Points window is then displayed, which allows one to modify any field it contains.
One can choose to Print in this window. The relevant window is then displayed. The list format in text mode is as follows:
POINT LIST
Name
X Coord.
Y Coord.
Z Coord.
Code
1
422367.355
4068639.079
70.840
2
422378.326
4068642.938
71.300
3
422387.818
4068652.044
71.840
4
422386.678
4068654.075
71.860
5
422411.167
4068693.520
73.830
6
422429.688
4068723.361
75.390
7
422451.340
4068758.349
77.150
8
422455.229
4068766.271
77.550
9
422458.130
4068778.227
78.100
10
422463.956
4068811.373
79.590
If the title and reference have been defined in the drawing or the project, they will appear centered on the top of the first page of the list. See the Project command for further details on how to assign such data.

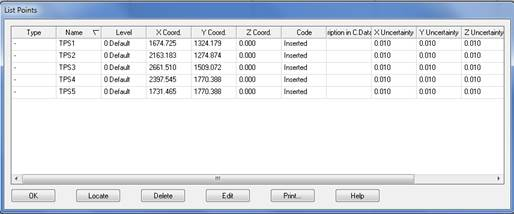

Furthermore, if uncertainties have been assigned to these points, the columns of uncertainties in the X, Y and Z coordinates appear on the list automatically.
