For various reasons, some projects may have areas with a low point frequency, which makes triangulation and contouring processes difficult. This command allows one to create new interpolated points from other existing points.

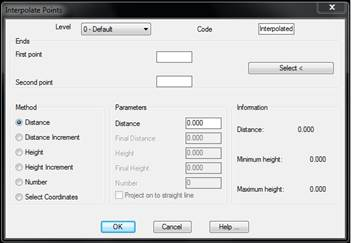

Firstly, the Interpolate Points dialog box containing the following elements is displayed.
Level: Selects the level where the new points are created. The default level is the current level.
Code: Sets the code assigned to the new points created.
Select: Button used to successively mark the two points between which the interpolation will be carried out on screen.
Information: Provides details on the distance between the points selected and their minimum and maximum heights.
Should there be a defined triangulation, it is not modified. Consequently, it is necessary to triangulate once again if one wishes to include the interpolated points in the triangulation.
