The program displays a dialog box containing the following information, which can be edited.
Azimuth: Orientation of the clothoid at its initial point. If modified, the remaining parameters will not be altered, except for Output Azimuth.
Input Radius: Radius of the clothoid at its initial point. The sign indicates whether it is a clothoid rotating towards the left (negative sign) or the right (positive sign). When the value of the radius is edited, length is automatically modified while the parameter is maintained
Output Radius: Radius of the clothoid at its end point. The sign will be the same as the entry radius. When the value of the radius is edited, length is automatically modified while the parameter is maintained
Length: Distance travelled by the clothoid’s development. When edited, the parameter is automatically modified, while the entry and exit radii are maintained.
Parameter: Value which controls the clothoid’s curvature. When edited, length is automatically modified, while the entry and exit radii are maintained.
Output Azimuth: Orientation of the clothoid at the end point.

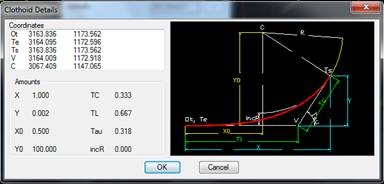

The Apply, Details, and Invert buttons behave as in Edit Line commands.
