Dividing by facade length

          With this division method you will be able to divide a plot into several plots, which will be perpendicular to one of the sides of the selected plot. The steps to follow are
·         Select the plot.
·         Select the side or facade from which the plot will be built perpendicularly
·         Indicate the method to create the plots:
o    Number: Enter the number of plots in which you want to subdivide the selected plot, according to the length of the facade.
o    Length: Length of the facade from which you want to create the plots, and which side will be shared with the facade of the designated plot.

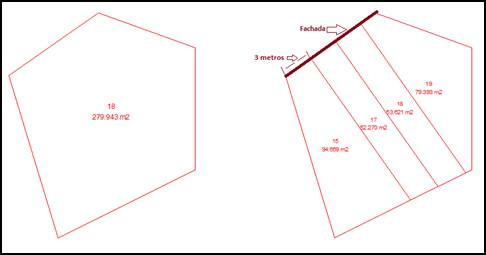

In the following screenshot you can see the subdivision of a plot, the shared side with the facade is 3 meters.
