16.13. Set-out Cross-Sections |
This staking option will allow us to obtain a list of coordinates, station and offset of a file of cross-sections with respect to an alignment.
The usefulness of this command is that it is no longer necessary to have the segment, only with the alignment and the cross-sections file we can generate the report.
Initially it will ask us to designate the alignment or the corresponding file and then the cross-sections file. Once selected, the following window will appear:
Control Points: Possibility of selecting the positioning and orientation control points. In the case of selecting them, two columns will be added to the report, the distance of each point analyzed to Control Point 1 and the orientation with respect to Control Point 2.
Initial Station: Station from which the stakeout is carried out.
Final Station: Station up to which the stakeout is carried out.
Critical Sections: Possibility of including in the analysis the critical section of the alignment.
Additional Stations: There is also the possibility of manually including certain stations to be analyzed.
Codes to Set-out: Existing codes in the cross-sections, the selected elements will be analyzed. There is the possibility to designate several items in the report.
Side: Possibility to indicate if we want to analyze a specific side or both sides simultaneously.

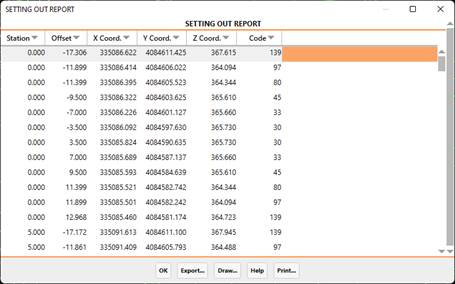

Finally, a report similar to that of the following capture will be generated.
|
|
