17.12. Roadbed Measurements Report |
With this option, the program generates a list of measurements of the selected segment. Initially it requests the segment or road previously defined then with the below window we indicate the stations between which the calculation will be made.
It includes the stations in each cross-section together with the following measurements:

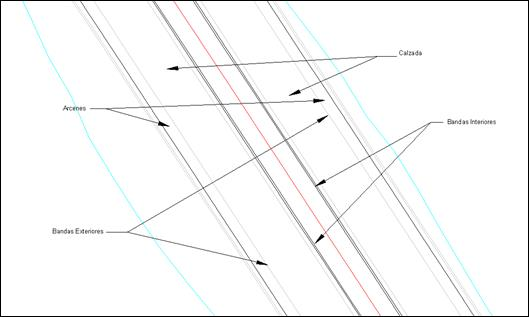

Length of the Internal Bands (LIB): This is the sum of the lengths of the lines defining the median ends between two consecutive stations.
Length of the Left and Right-Hand External Bands (LBEI, LBED): It is the length of the line separating the road and the hard shoulder on the left or right of the horizontal alignment between two consecutive stations.
Road Surfaces (Rd.Surf.): It is the sum of the areas of the road to the left and right of the horizontal alignment and the area of the internal hard shoulders between two consecutive stations.
Area of Left and Right-Hand Shoulders. (Surf.R.Shld. L.Shld) It is the area of the external hard shoulder to the left or right of the horizontal alignment between two consecutive stations on the list.
Roadbed volume (Rd.Bd.Vol.): It is the volume of the roadbed between two consecutive stations on the list.
