18.13.6.1. Measurements
These tools allow us to make measurements on the 3D viewer.

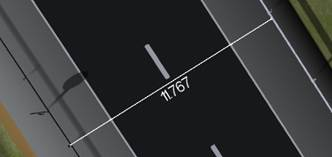

Performs a distance measurement in XY, designating two points in the viewer.

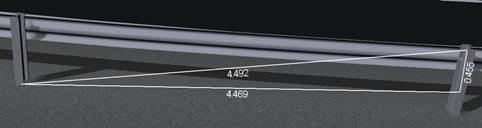

Performs an XYZ distance measurement, designating two points in the viewer.

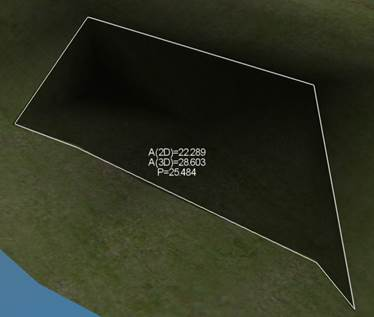

Take an area measurement, designating at least three points in the viewer.
Clear all measurements from the viewer.
Sets the line thickness of measurements.
Sets the color of measurements.
Sets the text size of measurements.Mini map
Show or hide the minimap

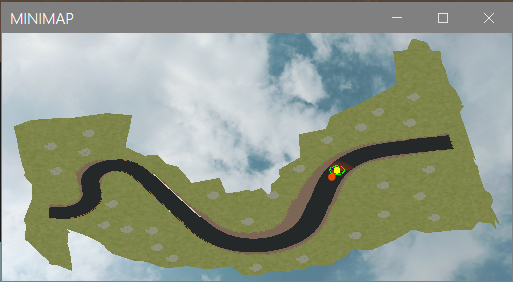

The minimap is displayed as a floating window that can be positioned and sized as desired. It can be hidden by closing the window or clicking on the Tools button > Minimap > Activate.
The orange dot represents the camera, the orange cone indicates the direction of the camera, and the yellow dot is the target point.
Left-clicking on the minimap immediately moves the camera to those XY coordinates (keeping whatever Z it had).
Right-clicking orients the camera to face the direction the click was made.
It is only possible to click on the minimap if the camera is not in Alignment mode.
