tcpMDT 25 - Reference Manual
×

18.13.3.1. General

Controls general lighting parameters.
 It allows to activate/deactivate the lighting in real time.
 If active, the scene is illuminated with a modeling light (the camera is the light source)
 Scene light source direction.
 Scene light source intensity.

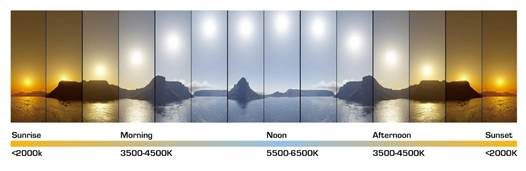

 Set the color of the light source. By clicking on the square, a color can be selected. Clicking on the circle sets the temperature of the light source in degrees Kelvin. In this graph you can see the relationship of color and temperature for the interval 2000-4500 Kelvin:

 Restores the default values of the general lighting.
