1.5. Drawing Data |
With this option we assign properties to the current drawing, additionally there is the possibility of assigning Properties Set which will be reflected, in the case of exporting the drawing to BIM format (IFC).
When executing this option, the following window will be displayed which the user can fill in with the data they want to highlight from the drawing they are working on.

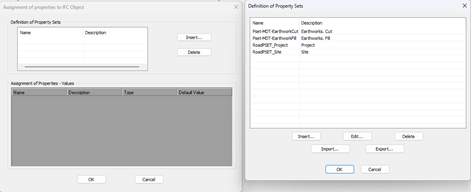

With the Properties button, we will assign the Properties Set mentioned above, for more detail, consult the BIM section where the entire process is described, both definition and assignment of properties as well as export to IFC.

|
