13.22. Definition of Road Lines |
With this tool we will define the road lines associated with the platform. It is possible to define these road lines for the following elements of the platform:
· Alignment marks: Road lines corresponding to the alignment position.
· Lane separation: Road lines located in the separation between lanes on both sides of the platform
· Road edge: Road lines located at the ends of the platform. Matches the lanes, hard shoulder or berm type vector.
Discretization: In the drawing in plan, the representation is made with polylines, this value indicates the discretization factor of these polylines.
Thickness: Thickness applied to the road mark for reprehension.

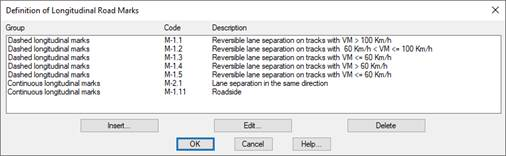

Road marks: By pressing this button we will see the following window from which the characteristics of each of the road lines will be defined. With the possibility of customizing them.
|
|
