13.3.4. Calculate Section of Link

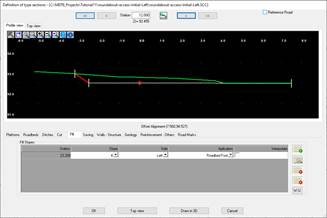

With this option, finally, we will define the road type section of the link. For this, initially it asks us for the reference polyline in the main road. Once designated, we move on to the definition of the type section.
A section will be created that represents the characteristics of the link. In this case study, we would have an outer hard shoulder on the left and a lane on the right.
In addition, depending on the link on the left or right, we will indicate that only cut and fill slopes are applied on the outer side of the link.
When you accept the section definition window, it will automatically be incorporated into the link segment.
