A terminal is available for advanced users who wants to know what the receiver is sending, where is shown the frames and messages received. This terminal is accessed from Device > Terminal or in the button in the GNSS receiver connection assistant screen. This terminal has the following options for interacting:
·Pause/Continue: The user can pause and continue receiving data into the terminal. However, while the reception is paused, the messages received will be discarded by the terminal.
·Record: Store the messages to a log file.
·Clean: Remove all the frames shown in terminal.
·Hex output: The messages are shown with hexadecimal values.

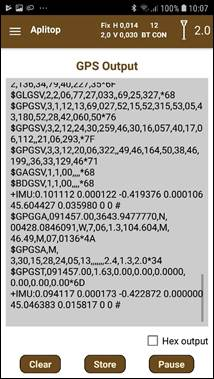

Figure 12. Monitor of the messages received from the GNSS
