In the slope control display screen, the elevation of the template closest to the current position of the GPS and the information related to the movements to be made to reach the position in said slope is presented.

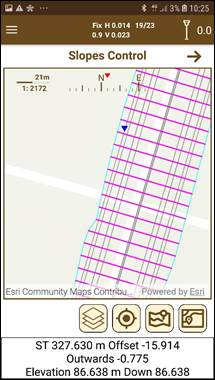

Figure 100. Slope control display (top view)

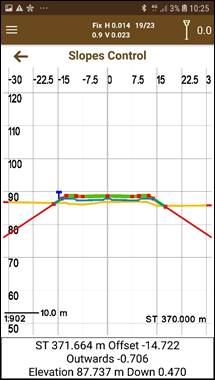

Figure 101. Slope control display (front view)
The information displayed is the following:
·The Station and the current displacement.
· Movement in / out of the horizontal alignment to reach the slope.
· Current elevation and movement up / down to reach the slope.
