Clicking the tools button displays a dialog box where you can find a set of tools to work with the points gathered. These tools correspond to the calculation of new points using intersections or reference points. There are three types of intersection: line-line intersection, line-circle intersection and circle-circle intersection. Two options are available for creating new points from reference points: distance and azimuth and 2 points and distance.

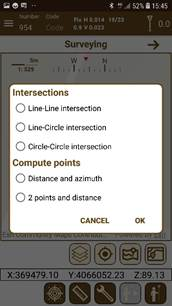

Figure 61. Surveying tools dialog box

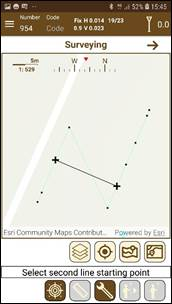

Figure 62. Selection of points for the intersection
Figure 63. Confirmation of the intersection solution
displays a dialog box where you can find a set of tools to work with the points gathered. These tools correspond to the calculation of new points using intersections or reference points. There are three types of intersection: line-line intersection, line-circle intersection and circle-circle intersection. Two options are available for creating new points from reference points: distance and azimuth and 2 points and distance.
