Solar Photovoltaic Energy

Field work

• Topographic surveys with GNSS
• Processing of LIDAR point clouds
• Inventories of facilities and infrastructure
• Stake-out of piles

3D terrain analysis

• North-South and East-West slope analysis
• Digital model of the natural terrain and the final design
• Configurable profile drawing

Custom, assisted design

• Division of the project into zones with different constraints
• Automatic distribution or conversion of designs from other applications
• Expandable tracker catalogue

Calculation and optimization

• Advanced terrain modelling tools
• Automatic calculation of axes and profiles
• Tools to detect and resolve criteria violations
• Calculation and drawing of cuts and fills

Results

• Reports of zones, trackers, supports, slopes, volumes, etc.

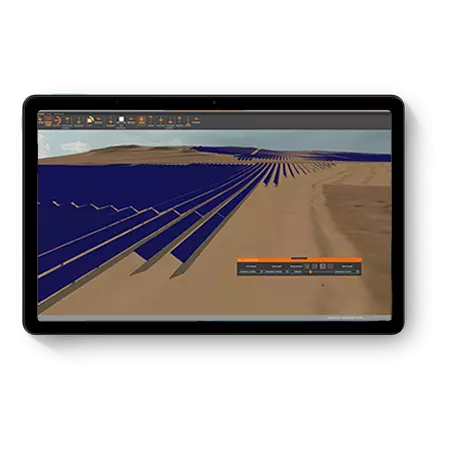

• 3D model of the plant and realistic representation over the terrain
• Export to IFC for OpenBIM

Complementary works

• Platforms
• Access roads
• Drainage works
